Resolved missing a bracket?

-

what's up, brothers/sisters.

long story short, bought mbp 5,5 (13" mid '09 2.53ghz) off ebay parts/repair $100. appeared battery , hard drive weren't included. pics weren't good.

got delivery, turns out of screws (literally every single screw; hinge, chassis, etc), speakers + mic, hard drive cable + brackets, 2nd ram stick, dc-in board, , rubber feet missing. not mention hard drive wasn't included lol.. battery included.. not sure if though.

anyway. ordered screws, speakers, 2 x 2gb ram sticks, dc-in board, hard drive + cable + brackets, rubber feet , that... pretty mic. don't need it. hinge screws , rubber feet came in today. still waiting else.
so.
see attached picture, , amazed @ wonderful tracing skills lol.

now... know right(?) speaker lays in green highlighted area, on side of superdrive, , fan goes.. right... in red area. obviously. lol

i'm concerned being missing though, , maybe i'm tripping.

see in red area, fan be.. heck second screw on fan go? , screw on superdrive (on side) go to? isn't bracket or missing? lol.. haven't taken macbook apart in little while don't quite remember every little detail. , macbook 9,2 (13" mid '12 2.9ghz), know setup bit different not much.

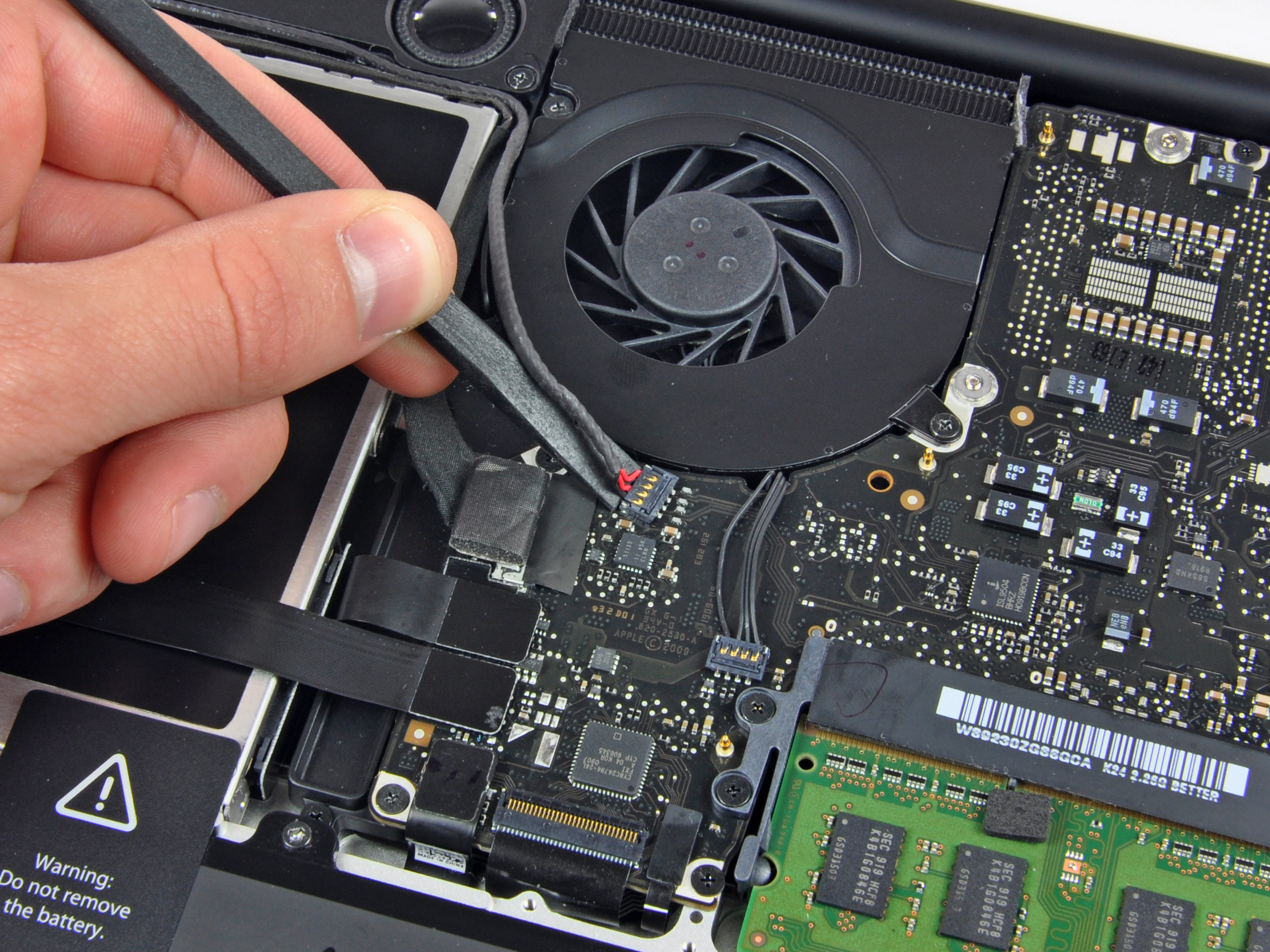

baffling mind right lol. second picture fan sitting would... screw holes circled ones screwed apparently nothing. lol. please... advice!


attached files:

help @ all? quick search... don't have same model. mine's 15".
